Introduction:

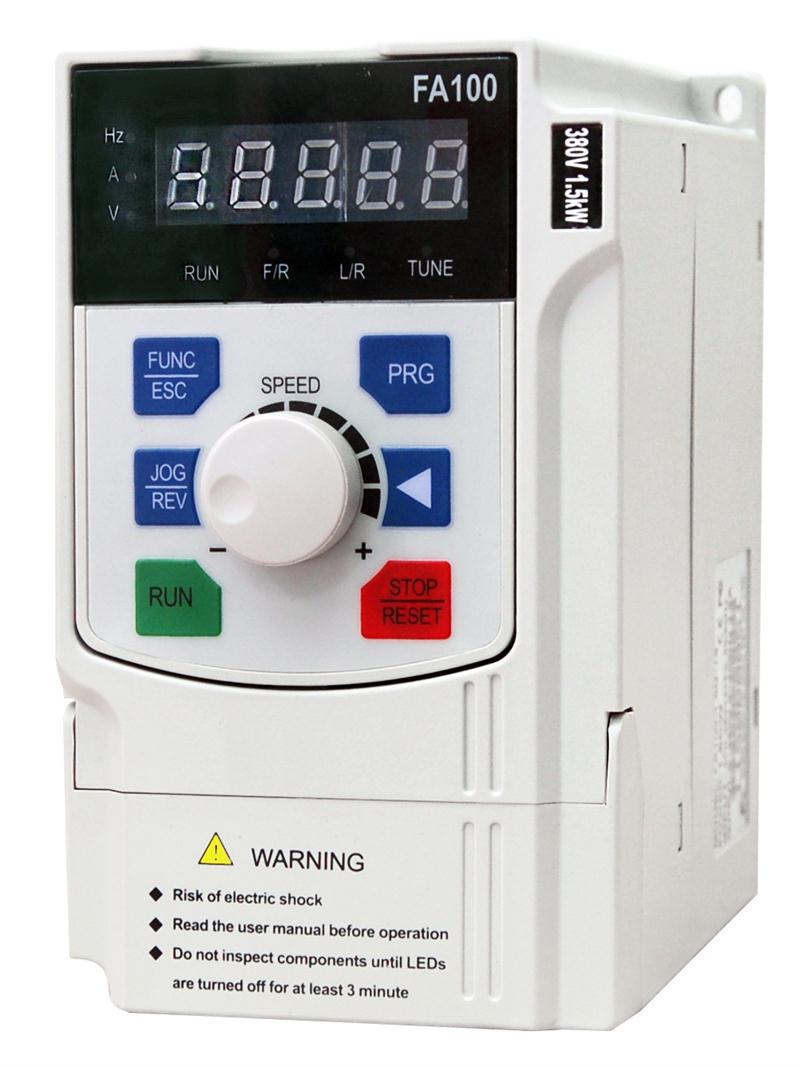

Model Type：

FA100-0.75G-S2, FA100-1.5G-S2, FA100-2.2G-S2;

FA100-0.75G-S2, FA100-1.5G-S2, FA100-2.2G-S2;
Power：

220~240V 0.75~2.2kW

380~400V 0.75~3.7kW

Input Voltage:

AC 1PH 220V (-15%)~240V(+10%)  50Hz or 60Hz

AC 3PH 220V (-15%)~240V(+10%)  50Hz or 60Hz

AC 3PH 380V (-15%)~440V(+10%)  50Hz or 60Hz

Output Voltage: 0~input voltage

Output Current: Refer to the rated value

Control Mode: V/F control

Motor: Asynchronous motor

Speed Control Accuracy: 0.1Hz

Overload Capability:

150% of rated current: 1 minute(G type)

120% of rated current: 1 minute(P type)

Frequency setting method: Digital setting, analog setting, MODBUS communication setting, Shift between the set combination and set channel.

Fault protection: Provide comprehensive fault protection functions: overcurrent, overvoltage, undervoltage, overheating,phase loss and overload, etc.

Installation Method: Wall mounted
Braking Unit：Standard inside

Demension: L152mm*W89mm*H123mm

Cooling: Air-cooling

Operation Temperature of the Environment: -10~40℃

Protective degree: IP20
