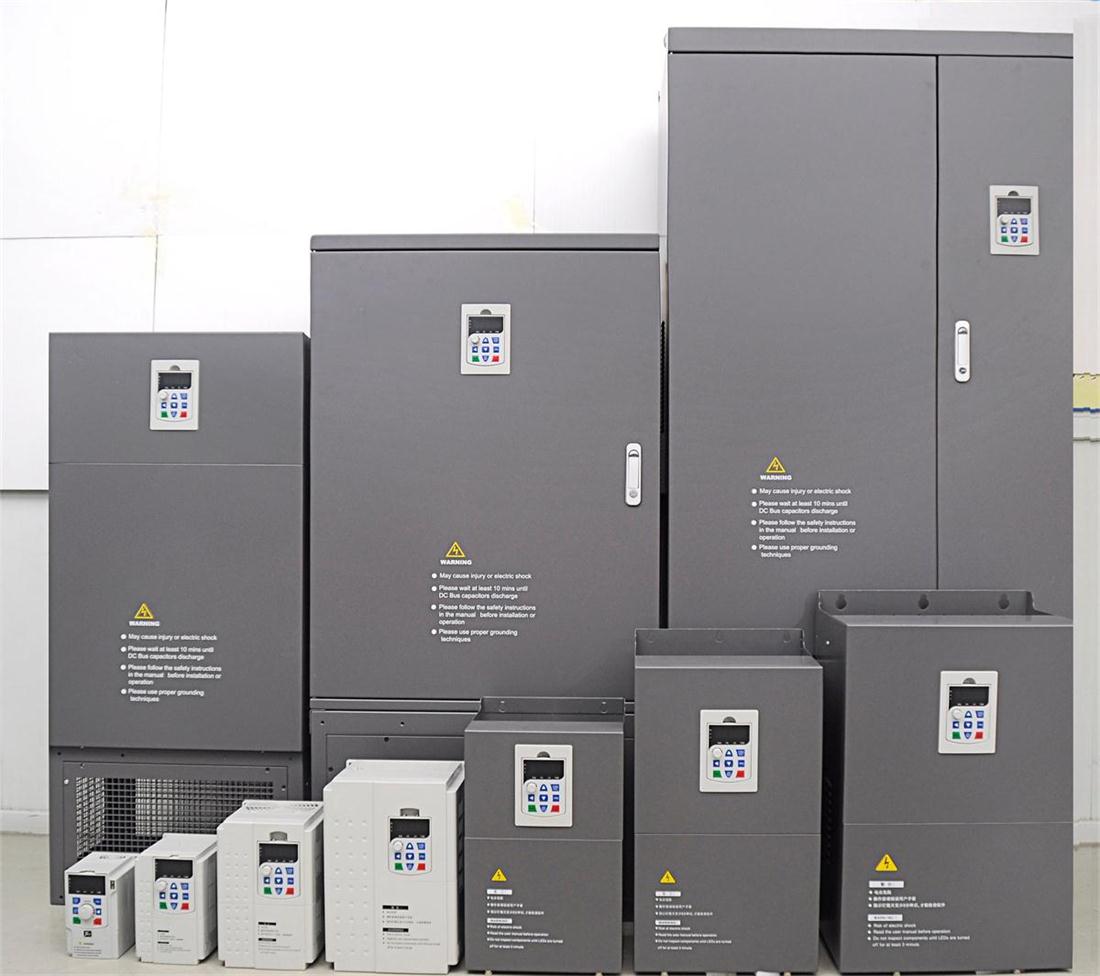

FA200 Series High Performance AC Drive
Introduction:

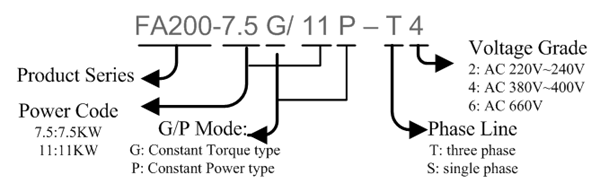

Model Type£º
Parameter£º
|
Rated Power£¨kW£© |
0.7 |
1.5 |
2.2 |
0.7 |
1.5 |
2.2 |
4 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
|
|
Output Current(A) |
5 |
7 |
11 |
2.5 |
3.7 |
5.1 |
9 |
13 |
17 |
25 |
32 |
38 |
45 |
60 |
|
|
Rated Voltage(V) |
AC 220V |
AC 380V(Three Phase) |
|||||||||||||
|
|
|||||||||||||||
|
Rated Power£¨kW£© |
37 |
45 |
55 |
75 |
90 |
110 |
132 |
160 |
185 |
200 |
220 |
250 |
280 |
315 |
|
|
Output Current(A) |
75 |
90 |
110 |
150 |
176 |
210 |
250 |
300 |
340 |
380 |
420 |
470 |
520 |
585 |
|
|
Rated Voltage(V) |
AC 380V(Three Phase) |
||||||||||||||
Control Mode: SVPWM
Motor: Asynchronous motor
Speed Control Accuracy: 0.1Hz
Overload Capability:
150% of rated current: 1 minute(G type)
120% of rated current: 1 minute(P type)
Frequency setting method: Digital setting, analog setting, MODBUS communication setting, Shift between the set combination and set channel.
Fault protection: Provide comprehensive fault protection functions: overcurrent, overvoltage, undervoltage, overheating,phase loss and overload, etc.
Installation Method: Wall mounted or Cabinet
Braking Unit£ºStandard inside(less than 18.5KW) / Outside
Cooling: Air-cooling
Operation Temperature of the Environment: -10~40¡æ
Protective degree: IP20
Safety: Meet the requirement of CE

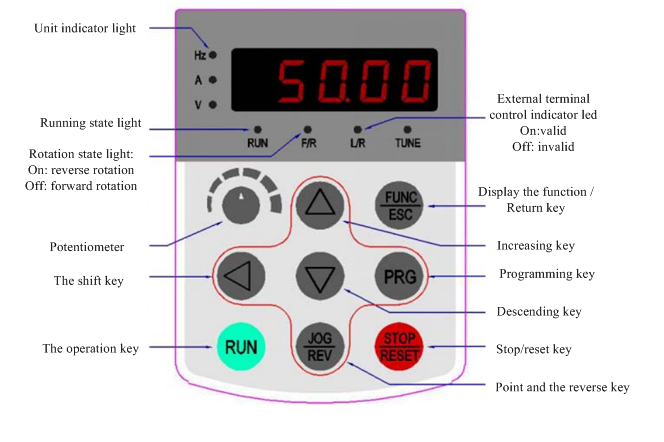

Diagram of Keyboard£º
